Three stereo microscope
详细说明
Three stereo microscope
Product use

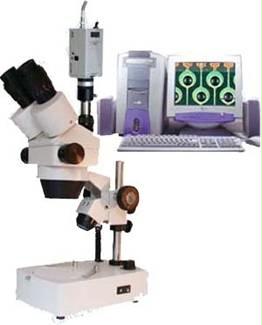

XTL-34/600 computer imaging zoom stereo microscope is the optical microscope technology, photoelectric technology, computer image processing technology the perfect combination and the development of a successful high-tech products. Thus, we can under microscope magnification microscopic image single photograph photographic or video camera to save and image processing, printing operation.
Microscope system:
1, three, 2, stereo microscope adaptor
In 3, a camera (CCD\C-MOS ) 4, A/D converter ( image )
Zoom stereo microscope technology parameters:
Lens zoom range: 0.7--4.5X
Wide angle eyepiece: WF10X ( 20X )
Total magnification: optical amplification 7--45X video amplifier 17--110X
Zoom ratio: 6.5:1
Binocular pupil distance adjusting range: 55--75mm
Round table: 95mm diameter
Mobile working distance: 300mm
Light source: up / down light source are halogen lamp / light source
