RATIONALHybrid Coordinate Measuring Sysetm
详细说明

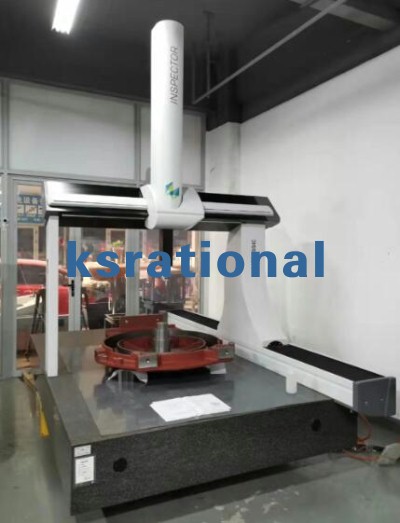

Hybrid Coordinate Measuring Sysetm
Hybrid Coordinate Measuring Sysetm
Hybrid Coordinate Measuring Sysetm integrates the probing and video system. With shifting best probing system, the measuring speed, flexibility and work efficiency are largely improved.
This Coordinate Measuring Sysetm machine integrates the probing and video system. With shifting the best systems, the systems, the measuring speed, flexibility and work efficiency are largely improved.
With the high accuracy CCD digital camera, the video measuring system can magnify the object and achieve the auto detection of the line, arc, circle and so on. This Coordinate Measuring Sysetm is suitable for the fine ,fragile, distortables pare part in the position where some styli can not reach .This Coordinate Measuring Sysetm is widely used in the fields of mechanism, electronic, auto, plastic, watch, mold, metal, etcModel
CMS-554MV
CMS-564MV
CMS-574MV
CMS-584MVCMS-665MV
CMS-685MV
CMS-6105MVTravel(mm)
X
480
580
Y
500/600/700/800
600/800/1000
Z
380
480
Weight(kg)
700/770/840/910
900/1040/1180
Dimension(mm)
1.0*1.1*2.2
1.0*1.2*2.2
1.0*1.3*2.21.14*1.1*2.4
1.14*1.3*2.4
1.14*1.5*2.4Max.Load(kg)
200
500
Package Size(mm)
1.45*1.37*2.1
1.45*1.47*2.1
1.45*1.57*2.1
1.45*1.67*2.11.35*1.55*2.4
1.35*1.75*2.4
1.35*1.95*2.4Space accuracy
MPEE=(3.5+L/250)
Monaxial accuracy
MPEE=(3.0+L/200)μm
Probing system
RENSHAW MH 20i/Video system
Measuring software
RationalDMIS(M)/M3D+M2D-AT
Resolution
0.5μm
Operation
Manual
Construction
Sliding bridge
Work environment
Power
220V±10% 50/60Hz
Air consumption
120L/min(0.4MPa)
Temperature
20±2℃＜1℃/h ＜2℃/24h℃＜1℃/m
Air pressure
≥0.5MPa
Humidity
40%～70%
VIDEO SYSTEM
Operation
Manual
Canmera
1/2"CCD Canmera
Lens
NAVITAR(USA)
lllumination
LED,can be continuous adjusted
Lens magnification
0.7X---4.5X
Total magnification
11.1mm----1.7mm
Accuracy
3.0+L/200
Total magnification
23.5X—148X
