RATIONALManual Coordinate Measruing System
详细说明

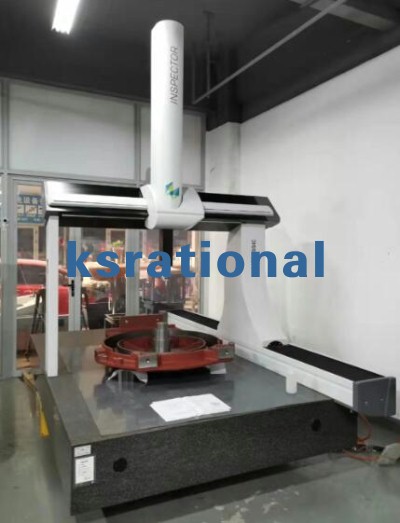

Manual Coordinate Measruing System
Manual Coordinate Measruing System
Usage
Manual series coordinate measuring machine can easily measure the 3D profile dimension, shape and position tolerance of all kinds of work pieces.
This coordinate measuring system is a photoelectric measuring system of high precision and efficiency. This coordinate measuring system is widely used in the trade of mechanism producing, electronic part, mold, automobile and aviation. This coordinate measuring system can inspect the dimension shape and position of the box, guide rail and other work pieces.
Characteristics
Probing system
Renishaw MH20i
Measruing software
RationalDMIS/CMM-Manager(M)
Model
CMS-554M
CMS-564M
CMS-574M
CMS-584MCMS-665M
CMS-685M
CMS-6105M
Travel(mm)
X
500
600
Y
500/600/700
600/800/1000
Z
400
500
Weight(kg)
700/770/840/910
900/1040/1180
Dimension(mm)
1.0*1.1*2.2
1.0*1.2*2.2
1.0*1.3*2.2
1.0*1.4*2.21.14*1.1*2.4
1.14*1.3*2.4
1.14*1.5/2.4
Max.load(kg)
200
500
Package size(mm)
1.45*1.37*2.1
1.45*1.47*2.1
1.45*1.57*2.1
1.45*1.67*2.11.35*1.55*2.4
1.35*1.75*2.4
1.35*1.95*2.4
Space accuracy
Space accuracy MPEE=(3.5+L/250)μm
Monaxial accuracy MPEE1=(3.0+L/200)μm
Resolution
0.5μm
Construction
Sliding bridge
Work invironment
Power
220V±10% 50/60Hz
Air consumption
120L/min(0.4MPa)
Temperature
20±2℃＜1℃/h ＜2℃/24h℃＜1℃/m
Air pressure
≥0.5MPa
Hunidity
40%～70%
Computer
CPU
C2.8G
Menory
512
Hard disk
80G
Monitor
17"LCD
Operating system
Windows XP Windows 7
