RATIONALAutomatic Coordinate Measuting System
详细说明

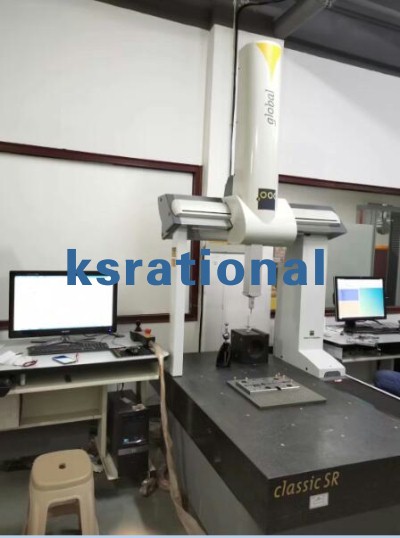

Automatic Coordinate Measuting System
Automatic Coordinate Measuting System
Usage
Automatic coordinate measuring machine adopts sliding bridge construction which greatly improves the motion functions. The working table ,guide rail ,crossbeam and Z-aixs all are made of granite and possessed of the same temperature feature and rigidity. The machine is of high stability and reliability through analyzing finite elements and dynamics.
Automatic coordinate measuring machine is widely used in the fields of machine manufacturing, electronic, automobile, etc. This coordinate measuring system can check the size shape, shape tolerance and position tolerance of work pieces so as to finish the detecting, measuring and process controlling of spare parts.Specification
Model
CMS-554C
CMS-574C
CMS-584CCMS-665C
CMS-685C
CMS-6105CCMS-886C
CMS-8106C
CMS-8126CCMS-10108C
CMS-10128C
CMS-10528CTravel(mm)
X
500
600
800
1000
Y
500/700/800
600/800/1000
800/100/1200
1000/1200/1500
Z
400
500
600
800
Weight(kg)
980/1120/1200
1100/1250/1400
2200/2460/2720
2600/2880/3300
Dimension(m)
1.21*1.3/1.5/1.6
1.31*1.4/1.6/1.8*2.53
1.65*1.9/2.1/2.3*2.85
1.85*2.1/2.3/2.6*3.25
Max.Load(kg)
500
800
1000
1500
Packing dimension(m)
1.3*1.6/1.8/1.9*2.22
1.4*1.7/1.9/2.1/2.42
1.9*2.3/2.5/2.7*2.4
2.4*2.45/2.65/2.95*2.4
Spcace accuracy
MPEE=(3.0+L/300)μm MPEE=(3.5+L/200)μm
Resolution
0.5μm
Construction
Sliding bridge
Work environment
Power
220V±10% 50/60Hz
Air consumption
120L/min(0.4MPa)
Temperature
20±2℃＜1℃/h ＜2℃/24h℃＜1℃/m
Air pressure
≥0.5MPa
Humidity
40%——70%
Characteristics
Drive system
Servo motor
Control system
RENISHAW UCC lite/Pantec
Measuring software
RationalDMIS/CMM-Manager(CNC)
Motion speed
300mm/s
Probing system
RENISHAW MH20i/RENISHAW PH10T+TP20R/RENSHAW RTP-20 semi-auto probe
