Small stroke automatic image measuring instrument
详细说明

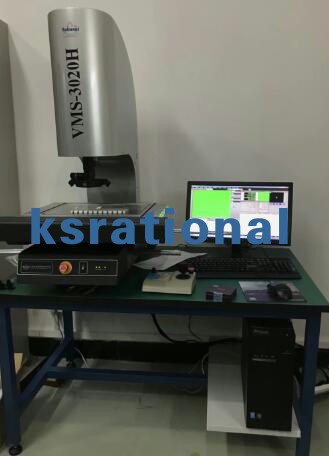

VMS-H Small stroke automatic image measuring instrument
CNC video measuring system
VMS-H series of products are an enhanced CNC model video measuring machine. It has a beautiful and generous structure and easy to operate, combined with our self-developed QIM5008 automatic measuring software, the machine can carry out mass measurement with highly efficiency. The features of the product are as follows:
1 Program controlled and constant current driven surface lamp is with four rings and four areas,
suitable for measuring various complicated Jobs.
2.With quick auto-focus, auto-detect, strong program and auto-measure function
3.Use sub-pixel technology to improve the ability of detecting the edges.
4 online SPC function ,Fixture measurement
5 X, Y and Z axis are controlled by servo, with high positing accuracy and smooth operation,
the speed can reach 180mm/s
6 Operate with Joystick and mouse which is very easy and convenient.
7 With laser indicator, system can measure locate the measurement position quickly
8 With auto-zoom as option, system can measure efficiently under various magnification
Specification
Modle
VMS-2515H
VMS-3020H
VMS-4030H
Work table
The metal table's size(mm)
450*280
500*330
606*466
The glass table's size(mm)
306*196
350*250
450*350
Travel(mm)
220*120
270*170
370*270
Weight(kg)
146
168
266
Dimension(mm)
760*600*900
760*600*900
970*670*940
Z-axis travel(mm)
150 (for focus)
The reolution of X, Y and Z-axis
0.5μm
The reading eror of X-axis and Y-axis
(3+L/75) μm (L is the length of the work pieces
to be measured, unit：mm)
Video system
Camera
Importe color 1/2" CCD camera
Zoom lens
American NAVITAR zoom lens coaxial light lens(option)
Magnification of zoom lens
0.7X--4.5X
Total magnification
23.5X--148X
Object view
11.1mm--1.7mm
Power
AC220V/AC110V 250W(exclude a computer)
standard and option
Accessories
1X tube(standard)
0.5X tube(option)
working distance
Zoom lens
0.7X~4.5X
0.7X~4.5X
mm
Additional lens
Video multiople
Object view
Video multiple
Object(mm)
0.5X(option)
11.8X—74X
22—3.4mm
5.9X—37X
44—6.8
175
Standard
23.5X—148X
11.1--1.7
11.8X—74X
22—3.4
92
2X(选\option)
47X—296X
5.5--0.0
23.5X—148X
11.1--1.7
36
Computer
17"monitor
Joystick
Standard ball
MCP simple probe(standard)
(standard)
(standard)
(option)
(option)
