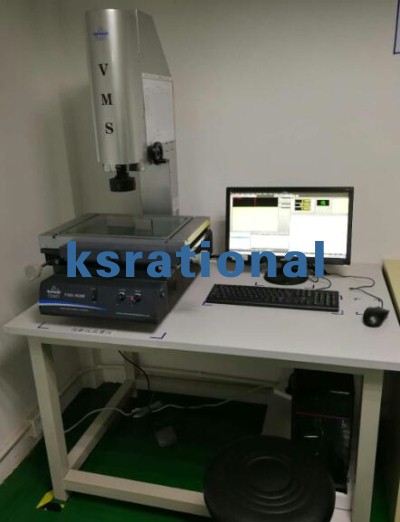

RATIONALVideo measuring system1510F
详细说明
VMS-F Video measuring system
Advanced series
Usage
Advanced series video measuring system is mainly applied in 2D measurement, this video measuring system is widely used in different kinds of precision finishing industries, such as mechanism, electronic, plastic and so on.
Specialities
Video measuring system is a photoelectric measuring system of high precision and efficiency. This video measuring system is composed of series of components, such as high resolution CCD color camera continuous zoom lens, Cross generator, precision linear scale, multifunctional digital readout (DRO), 2D measuring software and high precision working table. This video measuring system is supplied with RS-232 interface, the user can manage and output the graph by connecting with PC and running the M2D or QIM program.
Specialities
Model
VMS-1510F
VMS-2010F
VMS-2515F
VMS-3020F
VMS-4030F
Working table
The metal table's size(mm)
354×228
404×228
450×280
500×330
606×466
The glass table's size(mm)
210×160
260×160
306×196
350×250
450×350
Travle(mm)
150×100
200×100
250×150
300×200
400×300
Weight(kg)
100
110
120
140
240
Dimension(L*W*H)(mm)
540*560*850
540*560*850
760*600*900
760*600*900
970*670*940
Working distance
92 mm
Z-axis travel
200 mm
Resolution of X-axis and Z-axis
0.5μm
The reading error of X/Y-axis
(3+L/75) μm (L is the length of the work pieces to be measured，unit：mm)
Video system
Camera
Imported 1/2" CCD camera
Total manification
23.5X—148X
Magnificaton of zoom lens
0.7X--4.5X
Object view
11.1mm--1.7mm
Surface and transmission illumination all the LED, and the light is adjustable
Power
180V(AC)------260V(AC)
Power
50Hz
Measuring and aiming system
VMS-F/Ⅰ(standard)
USB302 /M2D/QIM3008
VMS-F/Ⅱ(option
DC3000 Data Processor/ M2D/IM3008
VMS-F/Ⅳ(option)
M2D/QIM3008M3D-MB/Computer/USB-303/RENISHAW
MCP PROBE
Ideal table Loading ≥350kg,Dimension(L*W*H)1000*600*500(mm)
