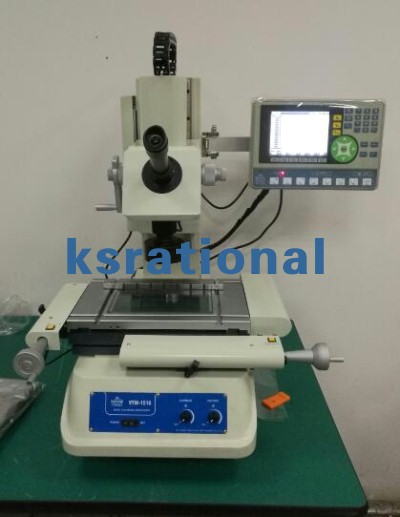

Video Toolmaker Microscope(Enhanced)
Usage
Video toolmaker microscope is a photoelectric measuring system of high precision and efficiency. This video tool-maker Microscopeis widely used in different kinds of precision finishing industries,such as electronic part ,precision mold,spring, plastic,precision tool,rubber,oil seal valve , camear part ,pedal cycle part and PCB processing .This toolmaker Microscope is mainly applied in 2D measurement, sometime in 3D as well . With eyepiece gauge , This video tool-maker Microscopeis can also measure by comparing . This video tool-maker Microscopeis can measure the pitch and external diameter of the thread . This video tool-maker Microscopeis is a must for the metric room ,laboratory or workshop of various sectors concerning to machinery ,electronics, gauging instrument as well as academies, research institutions and measurement-inspecting department.
Specialities
Video toolmaker microscope has many functions such as displaying, magnifying, inputting and outputting, With color CCD camera (with C-mount interface), the microscope can input and output the data by connecting with the computer.This video tool-maker Microscopeis is very convenient for the user to measure with standard M2Dor QIM 3008 software.
Specification
Model
VTM-1510F
VTM-2010F
VTM-2515F
VTM-3020F
The metal table's size(mm)
354*228
404*228
450*280
500*330
The glass table'size(mm)
210*160
260*160
306*196
350*250
Travel(mm)
150*100
200*100
250*150
300*200
Z-axis travel(mm)
150
150
200
200
Resolution for X.Y.Z axis
0.5μm
0.5μm
0.5μm
0.5μm
Weight(kg)
100
110
135
140
Dimension(L*W*H)(mm)
540*667*850
540*667*850
800*675*920
800*675*920
X.Y axis accuracy
≤(3+L/75)(L is the lenghth of the work pieces
to be measured,unit:mm)
Eyepiece
Lens magnification
Eyepiece magnification
Total magnification
Accuracy1X,3X(standard),5X
10X(same for single and double eye piece)(option)
10X--50X
≤0.08%Transmission illumination
Reflective illumination24V/20W Halogen lamp
12v LED ring lamp and reflective illumination with laser point
Image system
F-image system
Imported 1/2"CCD Camera
Software:M2D/QIM3008
