Video microscope VM0745
详细说明

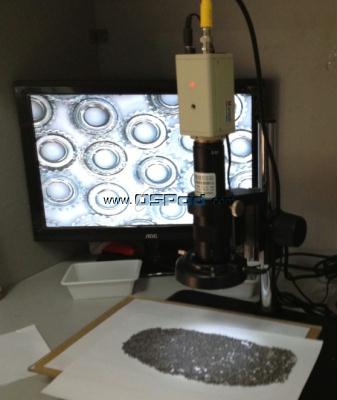

Video microscope VM0745
VM0745 series video microscopy can be for the small object through the optical microscope to enlarge, the amplified image into a TV or computer, displayed on the display were observed and analyzed. It will the traditional microscope observation of the human eye to upgrade to the - - - - - - through the display screen reproduction, convenient observation and image recording, which can improve the work efficiency.
Video microscope system.
In 1, single cylinder of continuous variable magnification lens
2: 0.5X/1X, CCD adaptor
In 3, the imaging system: CCD ( Mintron, SONY, TEO, JVC )
A 4, optional: video card image output and processing
5, optional: video adapter is connected directly with the computer display
6, optional: measurement software for product data output and processing
Technical parameters
Lens zoom range 0.7--4.5X
Lens magnification 0.5X
Total magnification 18—160X ( CCD to 1/3 inch and 19 inches of display as an example )
Zoom ratio 6.5:1
Light source light source is an annular fluorescent lamp or adjustable LED cold light source, without light source
