RATIONALCPJ-40250W profile projector
详细说明

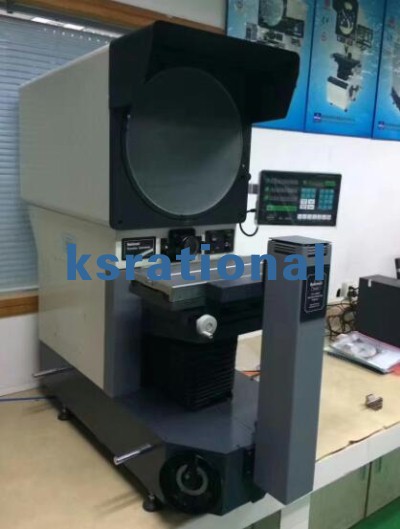

CPJ-40250W horizontal profile projector
CPJ-4025W Ф400mm horizontal profile projector is a photoelectric measuring system of high precision and efficiency. This series profile projector is widely used in the trade of mechanism, mould, tool, electricity and light industry. This series horizontal profile projector is a must in the checking department and kinds of surface and online of the complicated work-pieces, such as template, cam, tread, gear, milling cutter and so on.
Usage
Specification
Model
CPJ-40250W
Working table
Wtoking table(mm)
450*200
X-axis's travel(mm)
200
Y-axis's travel(mm)
100(for focus )
Z-axis's travel(mm)
150
Turning range(mm)
±15°
Reolution(X/Z)(μm)
4+L/25(L is the lenght of the work piecex to be measured,unit：mm)
Resolition range
0.5μm
Dimension
L*W*H(mm) 1215*646*1210
Weight
Unit(kg) 240
Projector
Screen size(mm)
Ф 400
Screen rotary range
0~360°
Rotary angle resolution
1 ′ 或0.01°
Projector
Screnn size(mm)
5X(option)
10X(option)
20X(option)
50X(option)
100X(option)
Object view(mm)
Ф80
Ф30
Ф15
Ф6
Ф3
Working distance(mm)
93.7
77.7
44.3
38.4
25.3
Ideal table
Loading ≥350kg Dimension(L*W*H)1100*550*500(mm)
Data processing system
DC-3000 multi-function data processing system,appearing in English,
can be used to gather data and measure the point,line,circle,angle and distance.lllumination
Transmission:24V/150W.cooling by fans
Reflection:21V/150W, illuminated by two fibers, cooling by fans.Power
110V/220V(AC) 50/60Hz total power=400W
Option
Mini-printer, Edge detector,M2D software and so on, please refer to accessories for
profile projector for more details
