RATIONALCPJ-3020W hoizontal Profile Projector
详细说明

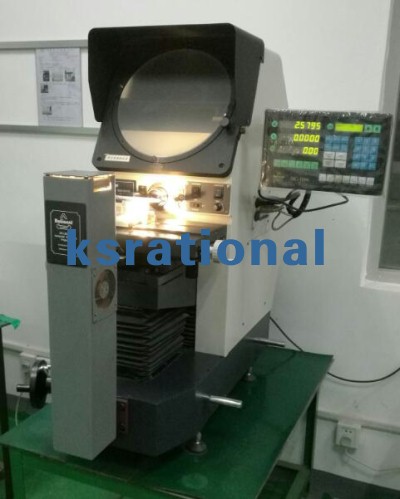

CPJ-3020W hoizontal Profile Projector
CPJ-3020W Ф300mm horizontal profile projector is a photoelectric measuring system of high precision and efficiency. This series hoizontal profile prjector is widely used in the trade of mechanism, mould, tool, electricity and light industry. This series hoizontal profile prjector is a must in the checking department and kinds of surface and online of the complicated work-pieces, such as template, cam, tread, gear, milling cutter and so on.
Specification
Model
CPJ-3020W
Working table
Working table size(mm)
400*150
X-axis's travel(mm)
200
Y-axis's
75(for focus)
Z-axis
100
Turning range
±15°
The reading error of coordinatte(μm)
4+L/25(L is the length of the work piecex to be measred,unit:mm)
Resolution
0.5μm
Dimension
(L*W*H) 1090*585*1010
Weight
Unit（kg） 160
Projector screen
Screen size(mm)
Ф 300
Object view(mm)
0~360°
Rotray angle reolution
1 ′ 或0.01°
Lens
Magnification
10X(option)
20X(option)
50X(option)
100X(option)
Object view(mm)
Ф30
Ф15
Ф6
Ф3
Working distance(mm)
77.7
44.3
38.4
25.3
Ideal table
Loading ≥250kg Dimension(L*W*H)1100*550*500(mm)
Data processing system
DC-3000 multi-function data processing system,appearing in English
can be used to gather the data and measure the point, line, circle, angle, distance.lllununation
The illumination of transmission: 24V/150W-halogen lamp.
Power
110V/220V(AC) 50/60Hz total power 400W
option
Mini-printer,Edge detector.M2D sofeware and so on, please refer to accessories for
profile projector for more details
