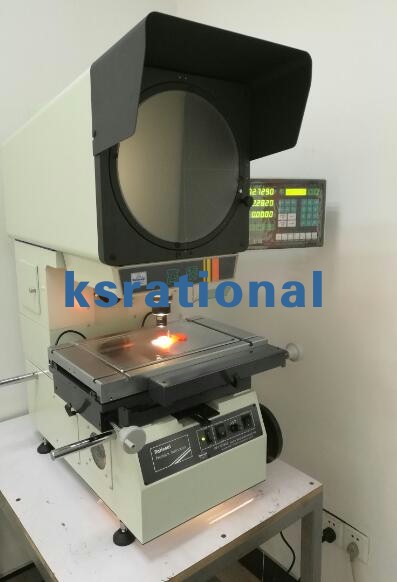

RATIONAL CPJ-3025CZ series Profile projector
详细说明
CPJ-3000CZ series profile projector
Usage
CPJ-3000CZ series of profile projectors are photoelectric measuring system of high precision and efficiency. The image on the screen is in the same direction with the work pieces. This series profile projector is widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement –inspecting department. This instrument can inspect all kinds of surface and outline of complicated work-pieces such as template, pressing work-pieces, cam, thread, gear, milling cutter and so on.
Specialities
CPJ-3000CZ series Profile projector is famous for its excellent quality of optical system. This series profile projector is processed of clear of clear image and accurate magnification. The error of contour measuring is under 0.08% under the illumination. The indication error of the coordinate is under (3+l/75) μm, (L is the length of the work pieced to be measured, unit: mm).This instrument provides the DC-3000 data processing system and foot-switch, which are convenient to output and gather the data.
Specification
Model
Erect image
CPJ-3015CZ
CPJ-3020CZ
CPJ-3025CZ
Working table
(mm)
The metal table's size
354*228
404*228
450*280
The glass table's
210*160
260*160
306*196
X-axis,travel
150
200
250
Y-axis travel
100
100
150
Z-axis travel
100
100
100
Weight
(kg)
170
175
180
Dimension
(mm) (L*W*H)
780*810*1120
780*810*1120
780*810*1120
Measruing
(μm) accuracy
(3+L/75)
(3+L/75)
(3+L/75)
Resolution(X-axis,Y-axis)
0.5μm
Projector screen
Screen size(mm)
Ф312 used range>Ф300(with the metter line)
Screen rotary range
0°～360°
Rtary angle resolution
1‵ or 0.01°
Lens
Magnification
10X(option)
20X(option)
50X(option)
100X(option)
Object view(mm)
Ф30
Ф15
Ф6
Ф3
Working distance(mm)
77.7
44.3
38.4
25.4
Max.Workpiece hegiht
90mm
90mm
90mm
90mm
Data processing system
DC-3000 multi-function data processing system
appearing in English,can be used to gather the data
and measure the point,line,circle,angle and distance.
lllumination
The illuniation of transmission and
reflection:24V/150w-halogen lamp.
Power
110V/220V(AC) 50/60Hz total power=400W
Cooling
By the fans
Accessories
Min-printer(option),Edgedetcetor(option),
M2D software(option) and so on,please refer
to accessories for Profile Projector for more details
Ideal table
Loading weight＞250kg
Dimension:800(L)*550(H)*650(W)mm
