series profile projectorCPJ-3025AZ
详细说明

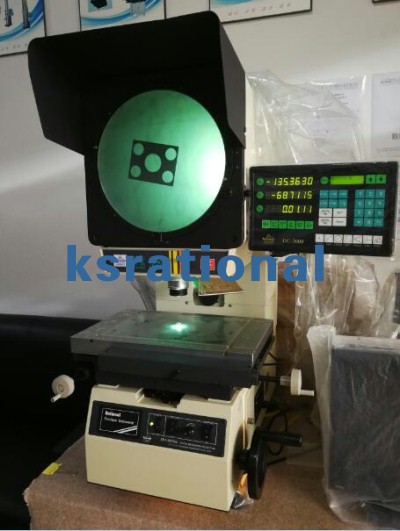

CPJ-3000A CPJ-3000AZ series profile projector
(正像与反像的区别As with the inverse image of distinction: as the imaging principle and imaging product displacement in the direction of the displacement direction is in the same direction as the displacement, direction is the opposite.)
Usage
Full erect :Not be affected by upside down and division in the left and right
High precision: (3+L/75) μm is comparable to the accuracy of the foreign similar products
Large travel:250*150*100(for the focus)
Large load : The accuracy remains stationary under the press of 50 kg
Projection box: Adjust the focus by ascending and descending
Edge detetor: Automatically aim and gather data
Specialities
CPJ-3000A CPJ-3000AZ series of profile projectors are famous for its excellent quality of the optical system. This series profile projector is processed of clear image and accurate magnification. The error of the contour measuring is under 0.08% under the illumination of transmission. This instrument provides the foot-switch , which are convenient to gather the data
You can adjust the focus by ascending and descending the projection box. The profile projector is with big travel and stationary performance because the working stable doesn’t ascend or descend , and the instrument can also measure the big range with high precision.
Specification
Model
Reverse image
CPJ-3015A
CPJ-3020A
CPJ-3025A
CPJ-3040A
Erect image
CPJ-3015AZ
CPJ-3020AZ
CPJ-3025ZA
CPJ-3040AZ
Working table
(mm)
The metal table's size
354*228
404*228
450*280
606*466
The glass table's
210*160
260*160
306*196
450*350
X-axis,travel
150
200
250
400
Y-axis travel
100
100
150
300
Z-axis travel
100(for focus)
Weigh
(kg)
160
160
180
250
Dimension
(L*W*H mm)
780*780*1100
810*780*1200
1040*780*1120
Measruing
accuracy (μm)
(3+L/75)
Resolution(X-axis,Y-axis)
0.5μm
Projector screen
Screen size(mm)
Ф312 used range>Ф300(with the metter line)
Screen rotary range
0°～360°
Rtary angle resolution
1‵ or 0.01°
Lens
Magnification(option)
10X
20X
50X
100X
Object view(mm)
Ф30
Ф15
Ф6
Ф3
Working distance(mm)
77.7
44.3
38.4
25.4
Max.Workpiece hegiht
90mm
Data processing system
DC-3000 multi-function data processing system appearing
in English,can be used to gather the data and measure the
point,line,circle,angle and distance.
lllumination
The illuniation of transmission and reflection:
24V/150w-halogen lamp.
Power
110V/220V(AC) 50/60Hz total power=400W
Cooling
By the fans
Accessories
Min-printer(option),Edge detcetor(option),
M2D software(option) and so on,please refer to acces
sories for Profile Projector for more details
Ideal table
Loading weight ＞250kg
Dimension:800(L)*550(H)*650(W)mm
