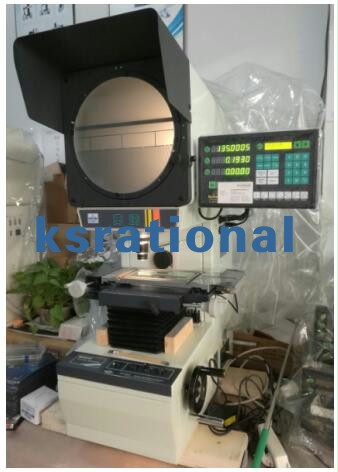

Ksrational CPJ-3015Z series profile projector
详细说明
CPJ-3000/Z series profile projector
(正像与反像的区别As with the inverse image of distinction: as the imaging principle
and imaging product displacement in the direction of the displacement direction is
in the same direction as the displacement, direction is the opposite.)
Usage
CPJ-3000/Z series of profile projectors are photoelectric measuring system of high precision
and efficiency. The image on the screen is in the same direction with the work pieces. This
series profile projector is widely used in the trade of mechanism, meter, electricity, light
industry, college, research institute and measurement –inspecting department. This instrument
can inspect all kinds of surface and outline of complicated work-pieces such as template, pressing
work-pieces, cam, thread, gear, milling cutter and so on.
Specialities
CPJ-3000/Z series Profile projector is famous for its excellent quality of optical system. This
series profile projector is processed of clear of clear image and accurate magnification. The
error of contour measuring is under 0.08% under the illumination. The indication error of the
coordinate is under (3+l/75) μm, (L is the length of the work pieced to be measured,
unit: mm).This instrument provides the DC-3000 data processing system and foot-switch,
which are convenient to output and gather the data.
Specification
Model
Reverse image
CPJ-3007
CPJ-3010
CPJ-3015
Erect image
CPJ-3007Z
CPJ-3010Z
CPJ-3015Z
Working table
The metal table's size(mm)
260*152
306*152
340*152
The glass table's(mm)
125*100
175*100
196*96
X-axis,travel(mm)
70
100
150
Y-axis travel(mm)
50
50
50
Z-axis travel(mm)
90(for focus)
Weigh
(kg)
120
125
130
Dimension
(L*W*H mm)
780*780*1100
Measruing
accuracy (μm)
(3+L/75)
Resolution(X-axis,Y-axis)
0.5μm
Projector screen
Screen size(mm)
Ф312 used range>Ф300(with the metter line)
Screen rotary range
0°～360°
Rtary angle resolution
1‵ or 0.01°
Lens
Magnification
10X(option)
20X(option)
50X(option)
100X(option)
Object view(mm)
Ф30
Ф15
Ф6
Ф3
Working distance(mm)
77.7
44.3
38.4
25.4
Max.Workpiece hegiht
80mm
Data processing system
DC-3000 multi-function data processing system appearing in English,can be used to gather the data and measure the point,line,circle,angle and distance.
lllumination
The illuniation of transmission and reflection:
24V/150w-halogen lamp.
Power
110V/220V(AC) 50/60Hz total power=400W
Cooling
By the fans
Accessories
Min-printer(option),Edge detcetor(option),
M2D software(option) and so on,please refer to accessories for Profile Projector for more details
Ideal table
Loading weight ＞250kg
Dimension:800(L)*550(H)*650(W)mm
