Microscopic measurement software
详细说明
Microscopic measurement software

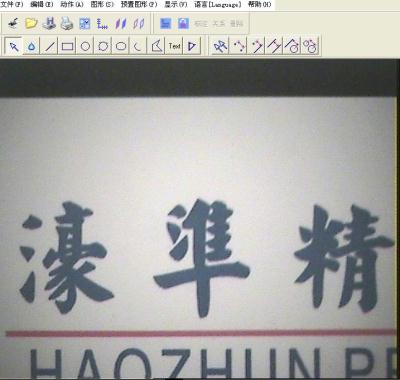

My company independent development of microscopic images of relational geometry parameter measurement software. The combination of software and automatic image acquisition card, in a dynamic image superimposed on the cross, grid, concentric circles and arbitrary graphics electronic scale, can be measured by point to point, point line, point - circle, line, circle line - line, circle round relationship, two point, angle bisector, vertical, parallel lines center line.
One、A variety of electronic scale
In the event of image superimposed on the cross, grid, outlets, concentric circles and arbitrary graphics electronic scale (Figure ), the color of the rod and the scale spacing can be set arbitrarily ( recommended by SDK-2000 acquisition card ).
Two、The workpiece to open and storage
Can be opened and the storage of common BMP, JPG image file format, can store contains measuring mark image.
Three、Image acquisition
Completely compatible Daheng company image image card, the card includes various source road and saturation settings, image acquisition and
The seamless junction after mining software, can be measured.
Four、The measurement of geometric elements
●: pose point prime
The line: two constitute the line, divided into several parts, the angle bisector, vertical
●round: three points form a circular, equal round, round area
●arc: three points to form an arc, arc.
●angle: three points, two rectilinear angle angle
●rectangular: Area
●arbitrary polygon, line and arc: polygon area perimeter, line and arc length of
Five、Various position
The measurement of little relationship: little distance, X, Y direction, two point, incremental lines and X axis angle
The measurement point: a point to a line between lines and vertical distance ( object distance and image distance), pedal
●round relationship: point to center distance ( object distance and image distance), and the circular relationship
Two line: two-phase intersection intersection, two-phase intersection angle, two-phase intersection angle bisector, parallel line
The circular relationship : Center of a circle to the straight line distance, circle and line intersection ( intersect or tangent .)
●round: round two: two relationship between circle distance, intersection of two circles ( tangent): the two circle, the distance of intersection
Six、Calibration
Can be performed on the pixels in the horizontal and vertical directions of dual calibration, calibration only once and can be repeatedly used results of calibration, measurement units may be pixels or pixel, micron / mm / pixel, cm / pixel, inch / pixels.
Seven、Report output
Can be convenient to measurement results stored in TXT or Excel format documents, generate Word statements.
Eight、Text note superimposed and ruler
In the measured image marker on any instructions and ruler
