ksrationalDTP-A1540V video tool presetter
详细说明

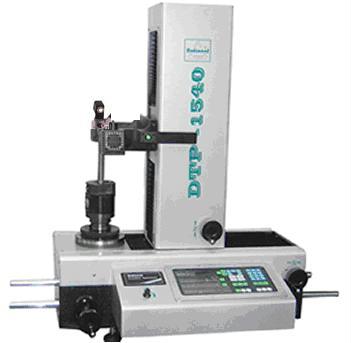

DTP-A1540V video tool presetter
Digital Tool Presetter
The instrument is precision tool presetter integrating optics, mechanism and electricity and viedo technique. This digital tool presetter is mainly applicable to measure the precise coordinate location of hecutting type which atr used for numerical control machine, machining cell and also can inspect angel, round corners, and fillet edge etc.
Character
● X and Z –aixs all adopt granite pedestal.
● X and Z-aixs all adopt open linear scale
● Operate with quick drag hangle and mirco-adjust hand wheel, which ensure the accurate aiming and hing efficiency.Specification
Measuring range
Diameter(X direction):Ф 300 mm
Height (Z direction):45-450mmPrinciple axis
BT40(standard)
BT30(option)Image system
High resolution camera 17"
LCD monitor video cross lineVideo magnification
Lens : 05X 0.5μm
Video total magnification: 20XResolution
0.5μm
Reading error
X direction:± IT5/3(R150: ±6μm)
Z direction:± IT5/2(H400: ±13μm)Air supply
0.6MPa
Power
AC110/220V 50/60Hz
lllumination
Contour light: LED light
Surace light: 240V 20W halogen lampDimension(mm)
1154*602*922
Net weight(kg)
160
